Our service:
1). Much more reasonable price than other factories.
2). Less than 15 days' delivery time for regular motor.
3). Long to 1 year's quality warranty, which can assure our after-sale service.
4). 24 hours' technical spport.
Specifications:
| Displacement(ml/r) | 127 | 163 | 200 | 225 | 259 | 295 | 349 | 372 | 473 | 540 | 745 |
| flow(LPM) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 |
| speed(RPM) | cont. | 336 | 350 | 330 | 290 | 290 | 250 | 215 | 200 | 150 | 140 | 100 |
| int. | 450 | 440 | 425 | 365 | 350 | 315 | 365 | 240 | 180 | 170 | 120 |
| pressure(MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 |
| torque(N*m) | cont. | 349 | 470 | 532 | 625 | 700 | 810 | 905 | 990 | 1110 | 980 | 1050 |
| int. | 408 | 548 | 602 | 710 | 790 | 930 | 1035 | 1140 | 1208 | 1240 | 1180 |
| output power(KW) | cont. | 12 | 15 | 15.5 | 16 | 17.5 | 18 | 17.5 | 16.5 | 14.5 | 11.5 | 8 |
| int. | 14 | 17.5 | 18 | 19 | 20 | 21 | 20 | 19 | 16.5 | 15 | 10 |
Features:
Compact in design with disc valving and Geroler.
High pressure capacity shaft seal.
Design and manufacture of the spline and drives give the motor durability.
Wide variery of mounting flanges,shafts,ports and speed provides design flexibility.
Direction of shaft rotation and speed can be controlled easily and smoothly.
Best combination of high efficiency and economy in medium duty applications.
Packing&Delivery&After-sale:
1. Standard wooden case or cartonbox
2. Safety for long-distance transportation
3. All of the productions will be checked carefully before delivery
Our Advantage:
1. Quick response within 12 hours
2. Accept small order(MOQ:1pcs)
3. Custom service.Unusual packaging,standard packing or as customer required
4. Excellent after-sales service
5. Strict quality control system.100% factory testing and inspection personnel in accordance with international standards for the high-frequency sampling, to ensure the quality of products manufactured
6. Accept ODM&OEM
Descrition:
Compact in design with spool valving and Geroler
Imported high pressure capacity shaft seal
Wide variety of mounting flanges, shafts, ports
and speed provides design flexibility
Direction of shaft rotation and speed can be controlled easily and smoothly
Best combination of efficiency and economy in medium duty applications
Applications: Hydraulic system, engineering machine, industry machine
Competitive Advantage: Good quality, Complete Series, Competitive price and Best service.
Packing:
Transportation:
1. who are we?
We are based in Jining, China, start from 2003
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Hydraulic motor
4. How long is the Warranty?
One-year warranty.
5. What is your payment terms?
Re: 100% in advance, long-term dealer 30% in advance, 70% beofre shipping.
6. How about the delivery time?
Normal Models within 2 days, unusual models and bulk order within 5-10 days.
Product Tags:
|
|

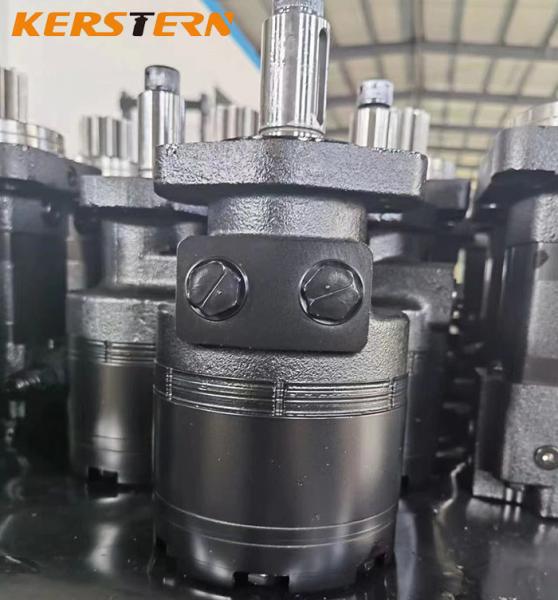

RE OMER BMER White Hydraulic Orbit Motor Images
|
